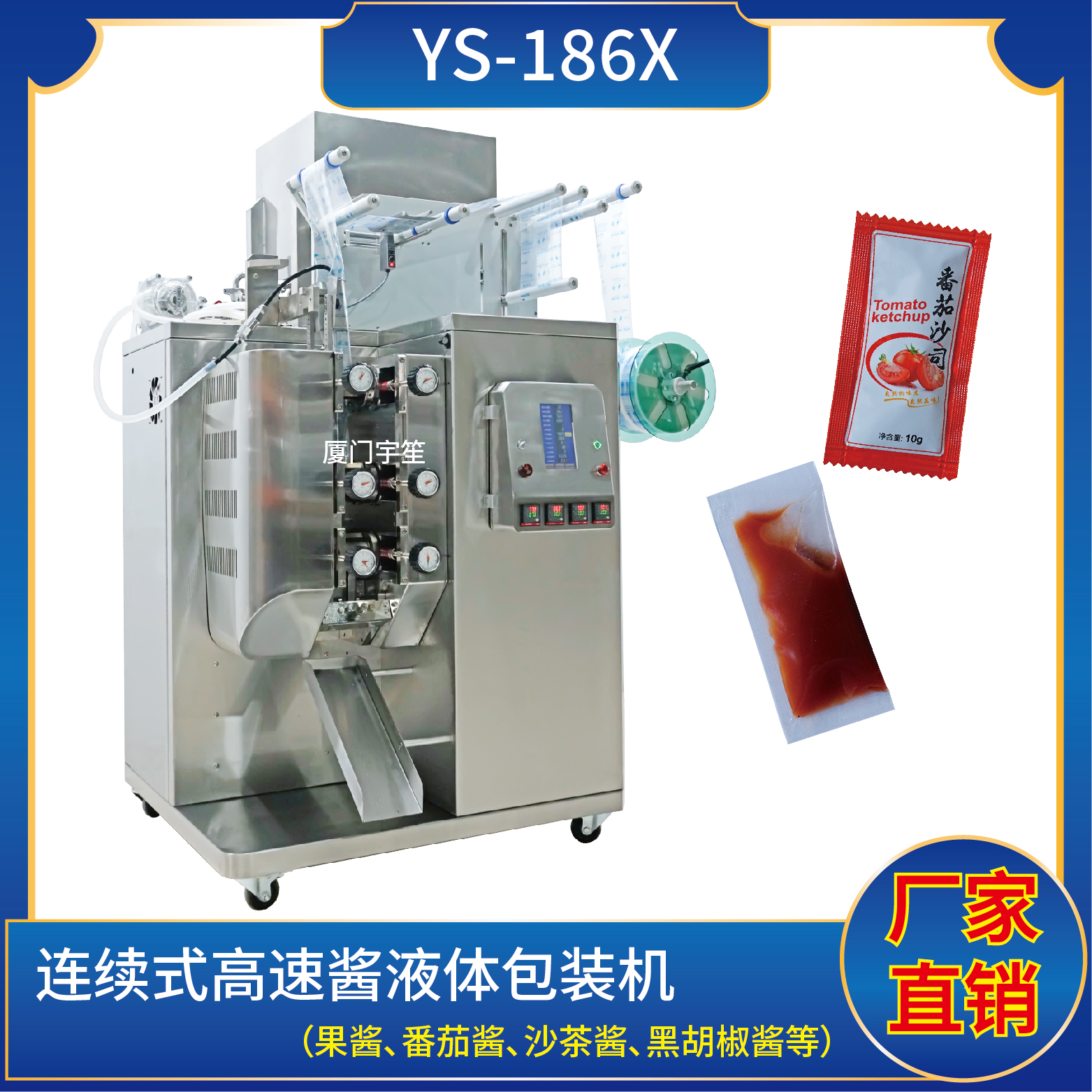

YS-186X高速醬料液體包裝機
YS-186X 高速醬液體包裝機
特 點 Characteristic
1、適用于番茄醬、咖喱醬、芝麻醬、油包、醋包、油潑辣子等醬料、液體等物品的計量包裝。
Suitable for the metering and packaging of pastes and liquids like tomato sauce, curry sauce, sesame paste, oil sachets, vinegar sachets, and chili oil.
2、可自動完成制袋、計量、下料、封合、分切、計數，可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring, filling,sealing, cutting and counting can be done automatically,at the
same time,it can also according to the demand of customers printing batch number and other functions.
3、觸摸屏操作，PLC控制，伺服電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差控制在1℃內。
The touch screen operation, PLC contro,servo motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包裝材料：復合膜。
Packing material：Packaging materials：composite film.
技術參數
Technical Parameters
計量范圍：1 - 60g
Measuring Scope
制袋尺寸：寬（W）：35 - 100mm
Bag size 長（L）：30 - 180mm
包裝速度：60 - 120bags/min
Packing Speed
外型尺寸: 1500x500x1900mm
Dimension ( L * W * H )
整機重量：450kg
Weight
總 功 率：AC220V / 50HZ / 5KW
Toal power
1、適用于番茄醬、咖喱醬、芝麻醬、油包、醋包、油潑辣子等醬料、液體等物品的計量包裝。
Suitable for the metering and packaging of pastes and liquids like tomato sauce, curry sauce, sesame paste, oil sachets, vinegar sachets, and chili oil.
2、可自動完成制袋、計量、下料、封合、分切、計數，可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring, filling,sealing, cutting and counting can be done automatically,at the
same time,it can also according to the demand of customers printing batch number and other functions.
3、觸摸屏操作，PLC控制，伺服電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差控制在1℃內。
The touch screen operation, PLC contro,servo motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包裝材料：復合膜。
Packing material：Packaging materials：composite film.
計量范圍：1 - 60g
Measuring Scope
制袋尺寸：寬（W）：35 - 100mm
Bag size 長（L）：30 - 180mm
包裝速度：60 - 120bags/min
Packing Speed
外型尺寸: 1500x500x1900mm
Dimension ( L * W * H )
整機重量：450kg
Weight
總 功 率：AC220V / 50HZ / 5KW
Toal power
